65 Inch TV Dimensions

How to use the 65 Inch TV Dimensions tool

1. Look at the “TV size (diagonal)” control. It starts at 65 in. To enter the diagonal in another unit, choose in, cm, mm or ft and type the new figure.
2. Leave “Screen shape (width:height)” at 16:9 for the usual widescreen shape. You can also choose 21:9, 4:3 or 16:10.
3. For any other shape, choose the custom ratio option and fill in “Shape, width part” and “Shape, height part”.
4. Read the default result, which is 56.65 × 31.87 in (143.9 × 80.94 cm), with a “Screen area” of 1,805 in² (12.54 ft²).
5. Type a value in “Bezel allowance (each side)” if you want an outer size. At 0.5 in on each side, the “Outer size with your bezel allowance” row shows 57.65 × 32.87 in (146.4 × 83.48 cm). At the default of 0, that row is hidden.
6. Open More options and type a figure in “Extra width for stand or cabinet”. Then read “Width to plan for (outer width + extra)”.
7. Read “Compared with the previous size”. For 65 in it shows 17.36% more screen area than a 60 in screen of the same shape.
8. Scroll to the viewing-distance table, the mounting-height table and the published figure. Each source is listed separately.

The presets save you typing. Choose “65 in, 16:9”, “With 0.5 in bezel”, “21:9, same diagonal”, “4:3, same diagonal” or “Next size up: 70 in” to load a setup in one click. Depth is not calculated, so measure your set’s depth separately.

How is the width and height of a 65 inch TV calculated?

The width and height come from the diagonal and the screen shape, using Pythagoras. For a shape a:b, width = diagonal × a ÷ √(a² + b²) and height = diagonal × b ÷ √(a² + b²), so diagonal² = width² + height².

For a 16:9 screen, a = 16 and b = 9, so √(16² + 9²) = √337 ≈ 18.36. Width = 65 × 16 ÷ 18.36 ≈ 56.65 in, and height = 65 × 9 ÷ 18.36 ≈ 31.87 in. The area is width × height, about 1,805 in² (12.54 ft², or 1.165 m²). Check the result: 56.65² + 31.87² ≈ 4,225, which equals 65².

Area grows with the square of the diagonal. A 60 in screen of the same shape has about 1,538 in², so the 65 in screen has 17.36% more area.

Why do listed TV sizes differ from the numbers on this page?

The numbers on this page cover only the visible screen. A TV maker’s support page says its listed size excludes the frame or bezel, and a retailer’s guide says its figure excludes the bezel, casing and stand. A real set is therefore larger than the calculated screen, and the bezel and stand depend on the maker and model.

A “class” size can also be slightly smaller than its label. A retailer gives a 55-class screen of about 54.6 in as an example, and a common reference says class sizes should be within 1/2 in of the actual size. This page states the point in a warning and does not correct for it.

Published figures are shown next to the calculation. A manufacturer’s approximate table, with no stated basis, gives 57.2 × 32.9 in. That differs from the screen-only figures by about 0.55 in in width and about 1 in in height. The page does not average the two. The 21:9 shape at 65 in is 59.74 × 25.6 in, and 4:3 is 52 × 39 in.

Sources also differ on viewing distance and mounting height. Viewing distance is given as 1.2 times the screen size by a TV maker’s guide, 1.2 to 1.9 times by a manufacturer guide, and as 36° and 26° viewing angles from other sources. One commonly quoted table gives 1.0 times the diagonal for 40°, which contradicts the geometry for 16:9, so this page does not use it. Mounting height is 42 in in a mount maker’s guide and a home-improvement guide, 38, 40 and 42 in in a tech-site guide, and 65 in in a retailer’s table. Each source is listed separately.

Compared with its neighbors, the 65 in screen is 56.65 × 31.87 in, against 52.29 × 29.42 in for 60 in and 61.01 × 34.32 in for 70 in. At the 42 in mounting center used by a mount maker’s guide and a home-improvement guide, the 65 in screen runs from 26.07 in to 57.93 in above the floor.

Sources (checked 16 October 2026): support.tcl.com · blog.bestbuy.ca · en.wikipedia.org · samsung.com · us.dynabook.com · benq.com · blog.sanus.com · bobvila.com · slashgear.com · nist.gov · blog.bestbuy.ca · samsung.com

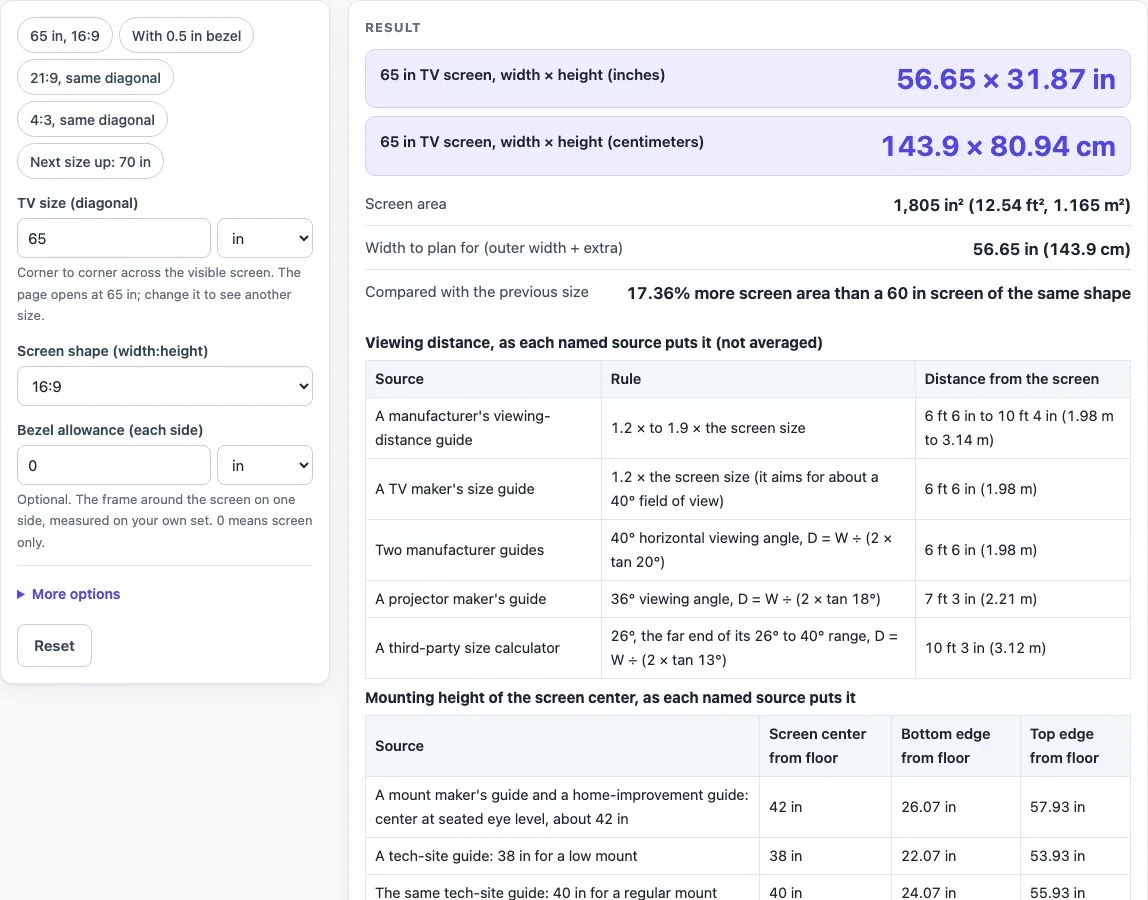

Worked examples

Calculated by the tool above; open it with the same values to see each step.

Frequently asked questions

What does 65 inch mean for a TV?

A 65 inch TV has a diagonal of 65 inches, measured across the visible screen from one corner to the opposite corner. It is not the width or the height.

How wide is a 65 inch TV?

For a 16:9 screen, the calculated visible width is 56.65 in (143.9 cm). The outer width is larger once a bezel is added, and the “Width to plan for (outer width + extra)” row adds any stand width you enter.

Does the 65 inch TV size include the frame?

No. A TV maker’s support page and a retailer’s guide both say the listed size excludes the frame or bezel. Use the “Bezel allowance (each side)” control to add an estimate.

Why does my 65 inch TV measure differently from this page?

A class size can be slightly smaller than its label, and the screen may be surrounded by a bezel, casing or stand. A manufacturer’s table gives 57.2 × 32.9 in, so up to about 1 in of difference appears between sources. Check the maker’s spec sheet for your model.

How far should I sit from a 65 inch TV?

The sources differ. A manufacturer guide gives 1.2 to 1.9 times the screen size, which is 6 ft 6 in to 10 ft 4 in. A TV maker’s guide gives 1.2 times, or 6 ft 6 in. The 40° angle gives 6 ft 6 in, the 36° angle gives 7 ft 3 in, and the 26° angle gives 10 ft 3 in.

Where do sources put the center of a 65 inch TV?

A mount maker’s guide and a home-improvement guide use 42 in, which gives a bottom edge of 26.07 in and a top edge of 57.93 in. A retailer’s table lists 65 in for 65 in screens, much higher than the 42 in rule. Both are shown.

Can this tool tell me whether a 65 inch TV will fit my space?

No. The result is calculated from the values you enter and does not say that a TV will fit a space or a stand. Measure the set and the space yourself.
